Magna Structura Automatis Cementarius Concretus Paratus in China
Magna structura paratio planta
Automata cementum paratio
Paratus concretum miscens
Sinica concretio partitura
Instrumenta aedificiorum fabricae partitura
- Conspectus
- Imagines Detalium
- Producti Parametri
- Producta Relata
Conspectus
| Exemplum | HZS25 | HZS35 | HZS60 | HZS90 | HZS120 |
| Productivitas | 25m³/h | 35m³/h | 60m³/h | 90m³/h | 120m³/h |

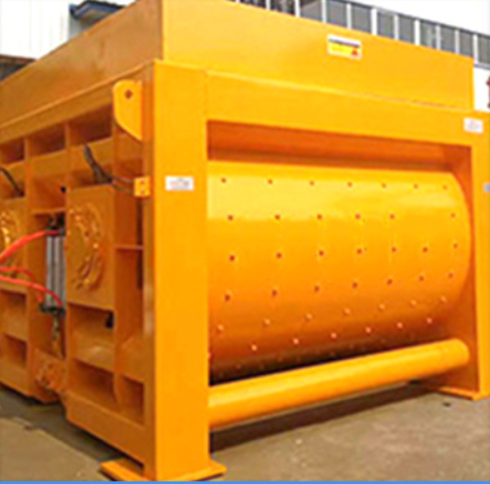

| Modelum turbinis | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Numerus generum aggregatarum | 3 | 4 | 4 | 4 | 4 |
| Maximus aggregati magnitudo | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
| Altitudo emissionis | 3800mm | 3800mm | 3800mm | 3800mm | 3800mm |
| Conglobatus | ±2% | ±2% | ±2% | ±2% | ±2% |
| Caementum | ±1% | ±1% | ±1% | ±1% | ±1% |
| Aqua | ±1% | ±1% | ±1% | ±1% | ±1% |
| Additivum | ±1% | ±1% | ±1% | ±1% | ±1% |
